Description

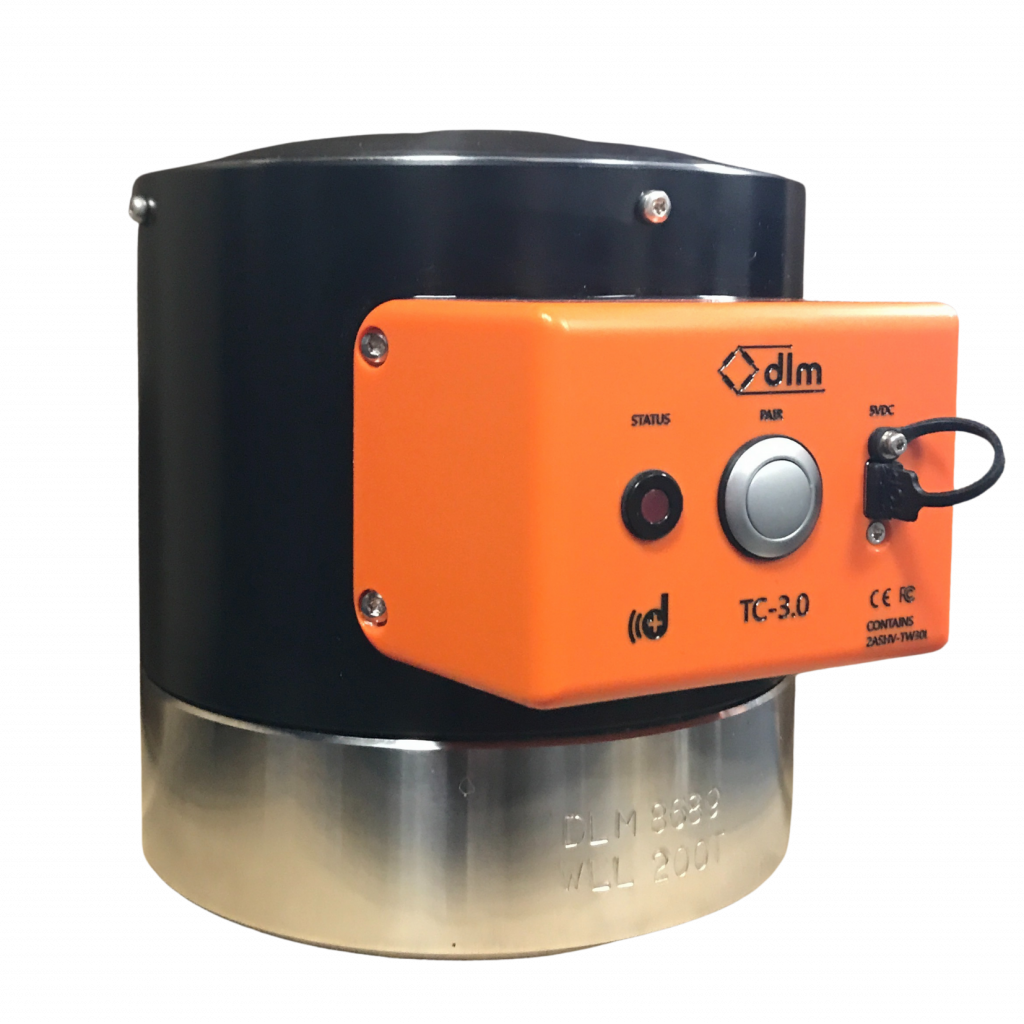

DLM’s Telemetry Compressive Load Cells can be used independently or in combination as part of weighing platforms.
They range from 100t to 300t and are manufactured using high-grade stainless steel, making these load cells particularly suited to rugged environments and the hire industry. Bespoke-size compressive load cells can be designed upon request. Some applications include tank weighing, hydraulic lifting operations, vessel weighing, and certification.
Key features
- 2.4GHz licence free frequency
- Ability to transmit to unlimited handheld displays
- Up to 800m range (line of sight)
- Remote power on/off
- Sleep mode for battery conservation
- Use the TW-3.0 Handheld to totalise load readings from multiple compressive load cells
Dimensional data
| Load Capacity (Tonnes) | Description | Part Number | Accuracy (%FRO) | Proof Load (% Load Capacity) | Weight (Kg) | Resolution (Kg) |
|---|---|---|---|---|---|---|
| 100 | Dome Top | 0001-1372 | <±0.5 | 150 | 14 | 100 |
| 150 | Dome Top | 0001-1373 | <±0.5 | 150 | 14 | 100 |
| 200 | Dome Top | 0001-1374 | <±0.5 | 150 | 14 | 100 |
| 300 | Dome Top | 0001-1375 | <±0.5 | 150 | 14 | 100 |
Product specification
| Battery: | 1 x 3.7V Li-Po rechargeable |
| Battery Life: | 700 hours continuous (2 years non-operational) |
| Charger: | Supplied with USB charger |
| Operating Temperature: | -20°C to +60°C |
| Handheld Display: | One or more TW-3.0 display |
| Frequency: | 2.4GHz |
| Range: | Up to 800m range (line of sight) |
| Loadcell Material: | Stainless steel |
| Bridge Resistance: | 1000Ω |
| Saddle Options: | Dome saddle / Tilting saddle |
| Operating Temperature range: | -10°C to +60°C |
| Compatible With: | TW-3.0-T handheld display / Custom built display / Centre of gravity display |
| Calibration: | Supplied with calibration, proof load and test certificates to traceable to UKCA BS EN ISO 7500-1 2018 |
