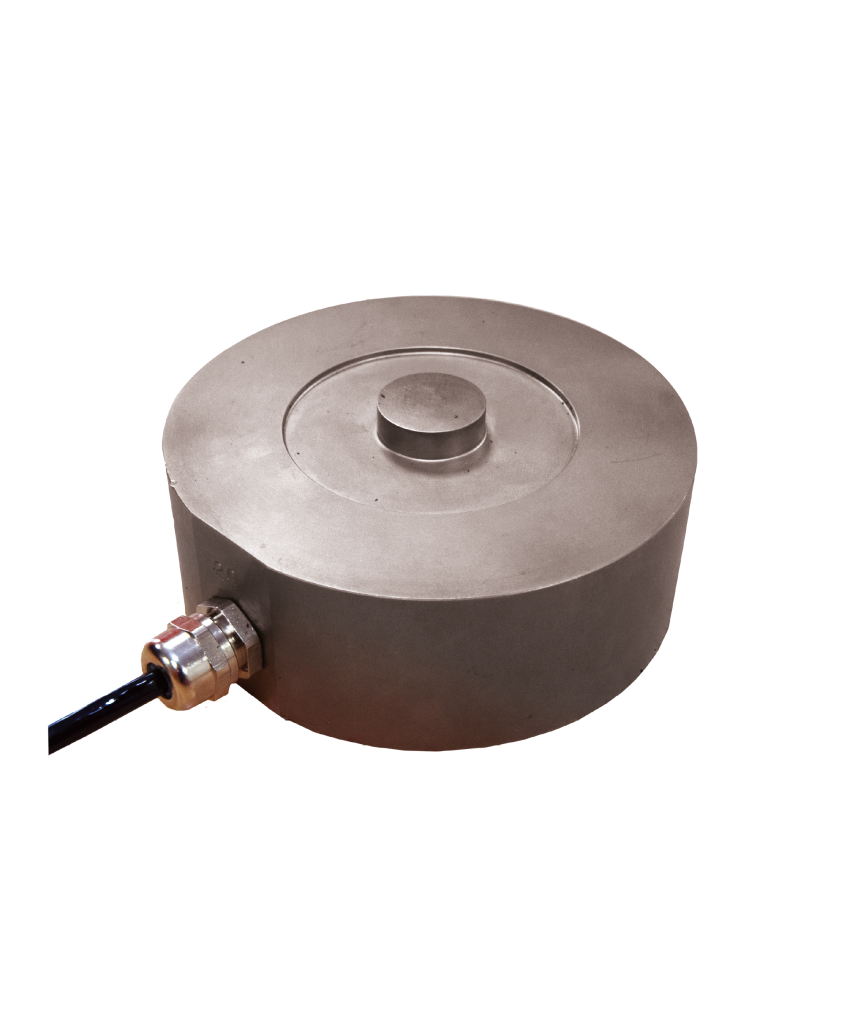

Low Profile Compressive Load Cell CCLP-1.0

Low Profile Compressive Load Cell
pdf icon Download product datasheet File size: 379.20 KB

Description

Low Profile Compressive Load Cell – 0.5t to 20t

Key features

  • Low height
  • Stainless steel
  • Sealed to IP68
  • Compression load cell
  • Integral load button
  • Welded cover

Applications

  • Testing and certification
  • Test stands
  • Vessel weighing

Dimensional data

Capacity (t) Part Number H B W R D T P
0.5 0001-1077 21 4 10 50 59 M3X7 42
1 0001-1078 21 4 10 50 59 M3X7 42
2 0001-1079 35 5 20 150 98 M6X18 72
5 0001-1080 35 5 20 150 98 M6X18 72
10 0001-1081 35 5 20 150 98 M6X18 72
20 0001-1082 35 5 20 150 98 M6X18 72

Product specification

Capacities 0.5, 1, 2, 5, 10, 20 tonnes
Full load output 2.0 (±0.25%) mV/V
Zero load output <±2.0 %
Excitation (max) 10 (15) V
Accuracy <0.25 %
Repeatability <0.1 %
Input resistance 750 (±20) Ω
Output resistance 700 (±2) Ω
Compensated temp. range -10 to +40 °C
Operating temp. range -20 to +60 °C
Temp. coefficient on zero <0.005 % Capacity/°C
Temp. coefficient on span <0.005 % Capacity/°C
Safe overload 150 %
Insulation 500MOhms @ 100Vdc
Environmental protection IP68
