Description

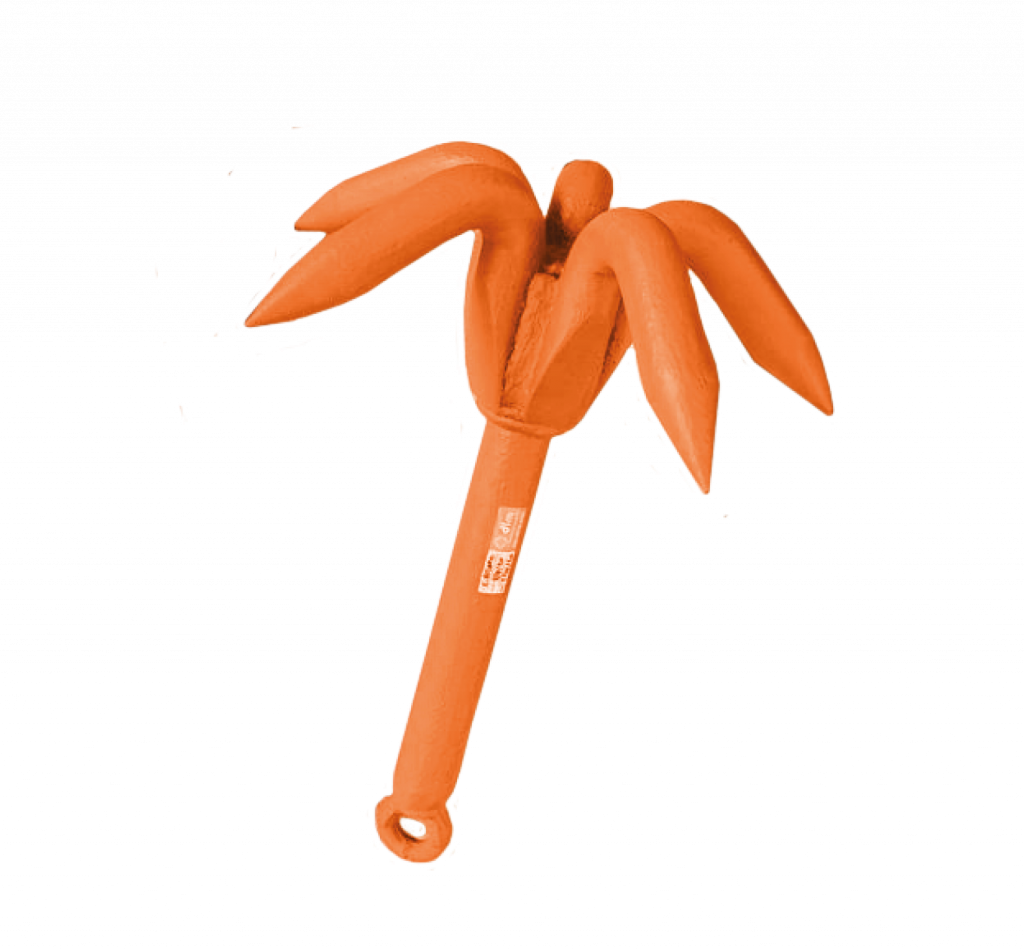

The Hand Grapnel is a lightweight and portable five prong grapnel, manufactured from high tensile steel and finished in orange marine paint.
Typically used in buoy recovery operations when grappling from the side of a vessel or in lightweight cable recovery.
Key features
- Manufactured from high strength structural steel
- Solid construction to ensure long product life
- Painted using marine grade paint
Applications
- Buoy recovery
- Cable recovery
Dimensional data
| Part Number | Description | A | B | WLL | Proof Load |
|---|---|---|---|---|---|
| 0001-1431 | 250kg Hand Grapnel | 355mm | 255mm | 250kg | 375kg |
| 0001-1434 | 400kg Hand Grapnel | 455mm | 255mm | 400kg | 600kg |
